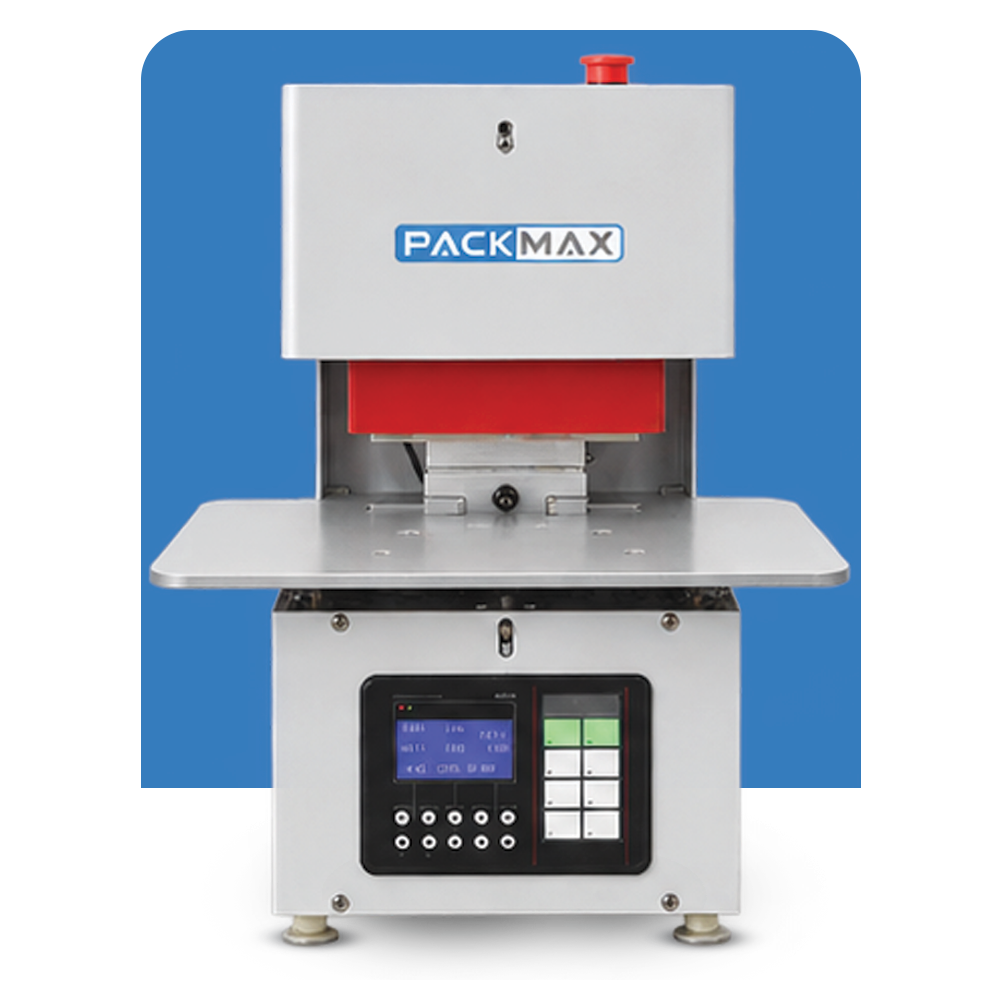

Model: PMX-SF001
Spout Sealer Machine
Reliable spout sealing for consistent pouch packaging.
The PMX-SF001 is designed for efficient and reliable spout sealing on three-side-seal and stand-up pouches. With controlled heating, chilled water circulation, and precise sealing capability, it provides a dependable solution for spout pouch packaging.
Technical Specifications
| Pouch type | Three Side Seal / Stand-Up Pouch |
| Pouch size range | 74–250 mm (W) x 100–300 mm (H) |
| Production range | Max. up to 10–15 pouches per minute |
| Machine size | 500 (L) x 650 (W) x 600 mm (H), approx. |
| Compressed air | 3 CFM @ 6 BAR |
| Chilled water | 2 litre/min @ 15–20 °C |
| Electrical supply | AC, Single-Phase, 215 V, 50 Hz |
| Connected load | 1 kW Approx. |
| Temperature controller | P.I.D. type – Mitsubishi, Japan |
| Pneumatic items | S.M.C / FESTO |
| Machine Weights | 44.5 kg |
| Safety | Cover With Auto Stop |
Watch the Machine in Action
See how the PMX-SF001 delivers reliable and consistent spout sealing for three-side-seal and stand-up pouch applications.
